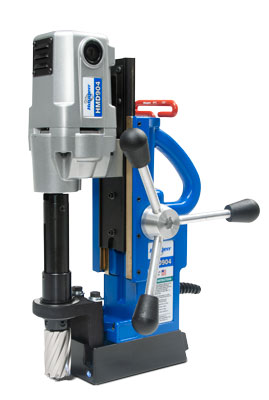

Hougen HMD904 Magnetic Base Drill
HOUHMD904Our most popular mag drill. The mag drill of choice for fabrication. Lightweight, compact, powerful and versatile.
Newly redesigned with the following features:
• NEW - Hidden motor cord
• NEW - Ergonomic housing
• NEW - Increased safety with less maintenance
• NEW - Height - 1-5/8" shorter
• Pilot light
• Two stage magnet - 30% power increase when motor is turned on
• Positive slug ejection
• Slot Drive arbor for more accuracy and quick change-out of accessories
• Many accessories are available for a portable machine shop including: drill
chucks, tapping, countersink, and more...
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear-mounted controls
• Gravity feed coolant system (HMD904 w/ coolant bottle)
• NEW - Carrying case included (09202)
• Two-year warranty
Technical Data
HMD904 SPECIFICATIONS | |||
---|---|---|---|
ELECTRICAL SYSTEM | 115V, 50/60 Hz - 9A, 1035W 230V, 50/60 HZ - 4.5A, 1035W |
||
Motor | 8A, 920W (115V) 4A, 920 W (230V) 450 RPM |
||
Diameter | 7/16" - 1-1/2" (12mm - 38mm) | ||
Depth | 2" (50mm) | ||
Cutter/Mount | "12,000-Series" & Copperhead cutters, 3/4" (19mm) shank |
||
Twist Drill Capacity | 1/2" w/ drill chuck | ||
Tapping Capacity | 1/2" w/ tapping unit | ||
Dimensions | 18" H x 7-3/4" W x 11-5/8" L (457mm H x 197mm W x 295mm L) |
||
Swivel Area | 1-1/8" W x 1-3/8" L (28.5mm W x 34.9mm L) | ||
Magnet | Base | 3-1/8" W x 6-9/16" L (79mm W x 34.9mm L) | |
1" Plate (25mm) |
Dead Lift 1750 lb (794 kg) |
Drillpoint Breakaway 995 lb (452 kg) |
|
3/8" Plate (9.5mm) |
1310 lb (594 kg) |
710 lb (322 kg) |
|
Swivel Magnet | 1" Plate (25mm) |
Dead Lift 1340 lb (608 kg) |
Drillpoint Breakaway Forward - 695 lb (315 kg) Back - 835 lb (379 kg) |
3/8" Plate (9.5mm) |
1015 lb (460 kg) |
Forward - 503 lb (228 kg) Back - 605 lb (274 kg) |
|
Weight | 30 lb (13.kg) | Shipping 44.1 lb (20 kg) | |
Weight (Swivel) | 33 lb (15 kg) | Shipping 46.1 lb (20.9 kg) |
Accessories
Part No. | Description |
---|---|
10731 | 1/2" Hougen Chuck with key |
10732 | 1/2" Jacobs Chuck with key |
07930 | Replacement key for 1/2" chucks |
08186 | Spindle Adapter for HMD904 with Slot Drive Arbor (Drill w/ Pilot Drill) |
05536 | Spindle Adapter for HMD904 with Hex Drive Arbor |
01829 | Spindle Adapter for HMD904 with Threaded Drive Arbor |
