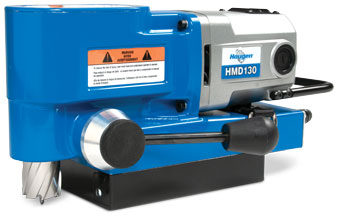

Hougen HMD130 Ultra Low Profile Magnetic Base Drill

Hougen HMD130 Ultra Low Profile Magnetic Base Drill

HOUHMD130

Please Contact Us for pricing and availability of this item.



UItra low profile lightweight right angle drill with a large capacity for truck frames & general fabrication.

• Only 6-11/16" high for extreme tight spots
• Lightweight at only 23.8 lbs (10.8 kg)
• Patented quill feed arbor for smooth cuts and minimal maintenance
• Uses RotaLoc Plus cutters which require no tools for installation or removal
• Pilot light for low light conditions and greater hole accuracy
• Two stage magnet. Engages full power only when motor is turned on, which increases magnet life.
• Positive slug ejection.
• High torque gearing
• Lift detector safety system
• Feed handle switches easily from side to side
• Ratchet can be used in place of feed handle
• Rear-mounted controls
• Carrying case included (08498)
• Two-year warranty

Technical Data

HMD130 SPECIFICATIONS
ELECTRICAL SYSTEM 115V, 50/60 Hz - 9A, 1035W
230V, 50/60 HZ - 4.5A, 1035W
Motor 8A (115V), 4A (230V)
450 RPM
Diameter 7/16" - 1-3/8" (12mm - 35mm)
Depth 1" (25mm)
Cutter/Mount RotaLoc Plus Cutters
with push & turn style shank
Dimensions 6-11/16" H x 6-3/4" W x 14-11/16" L
(170mm H x 171mm W x 373mm L)
Magnet Base 4" W x 9" L (102mm W x 229mm L)
1" Plate
(25mm)
Dead Lift
2165 lb (982 kg)
Drillpoint Breakaway
735 lb (333 kg)
3/8" Plate
(9.5mm)
1200 lb
(544 kg)
500 lb
(227 kg)
Weight 23.8 lb (10.8 kg) Shipping 31.7 lb (14.4 kg)
